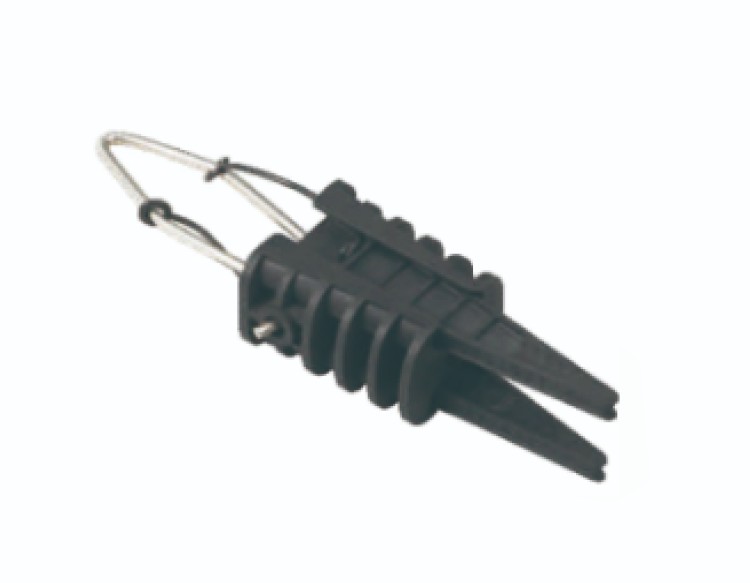

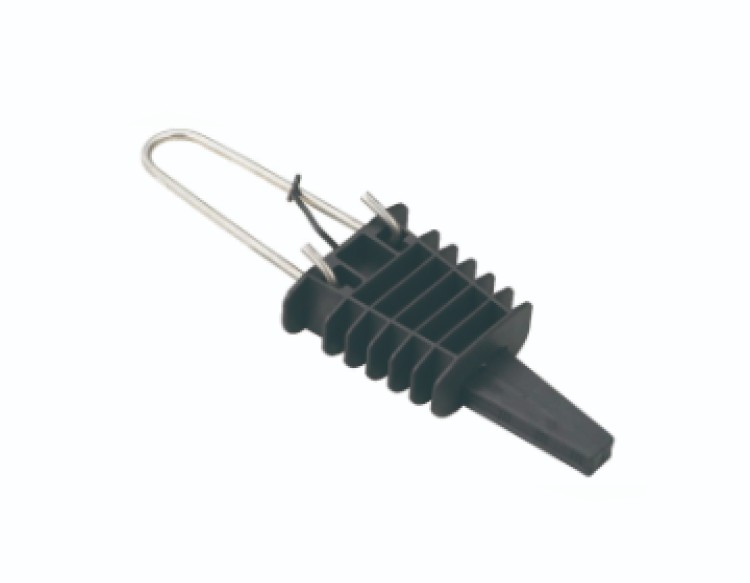

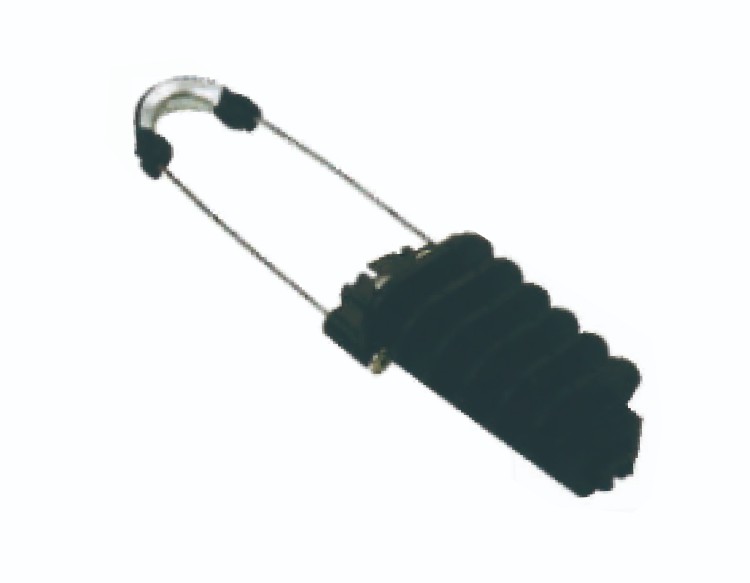

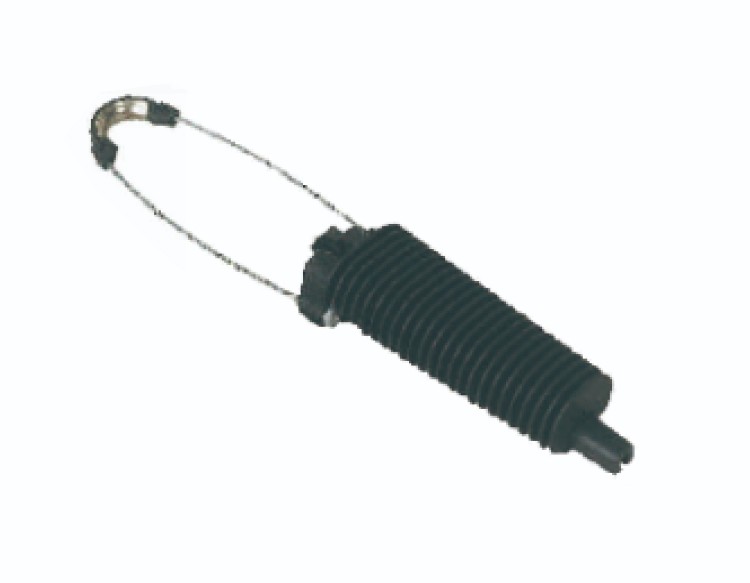

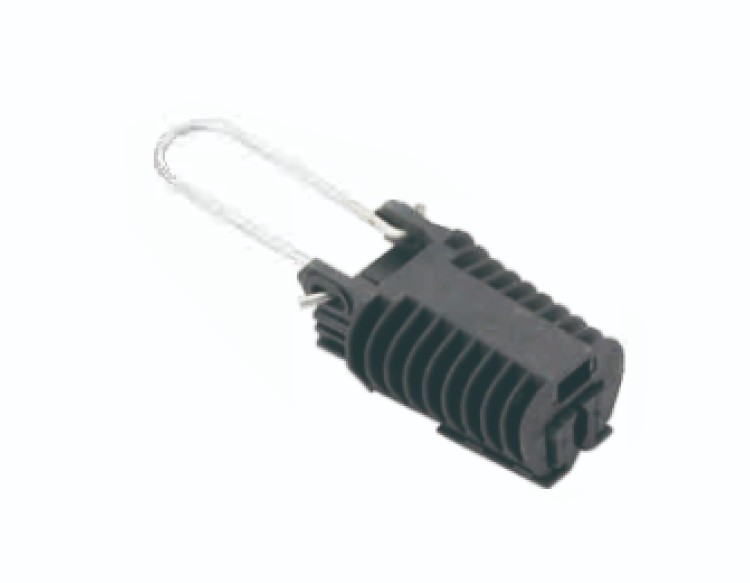

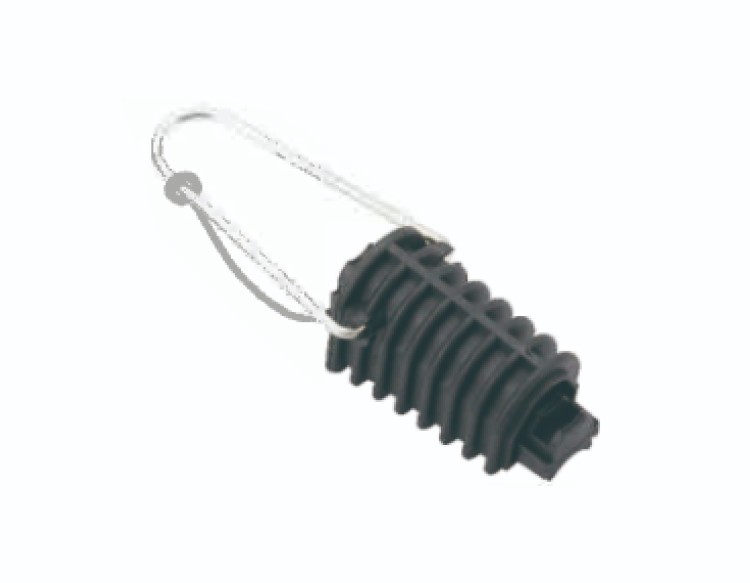

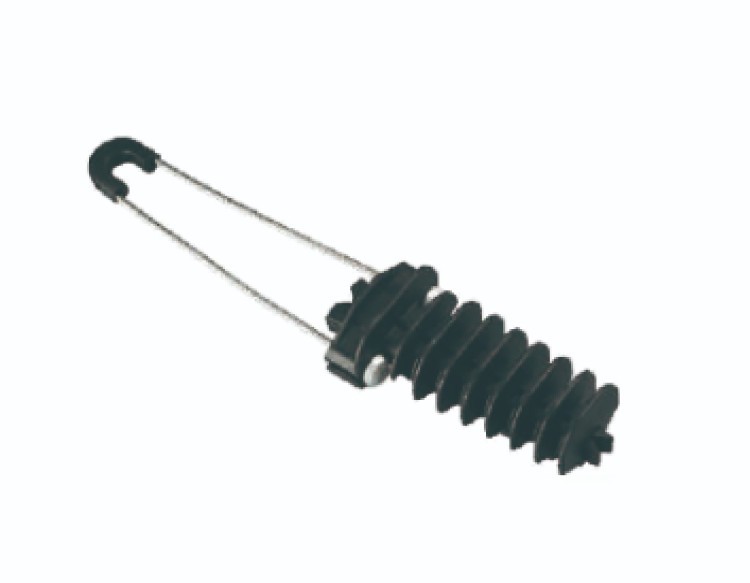

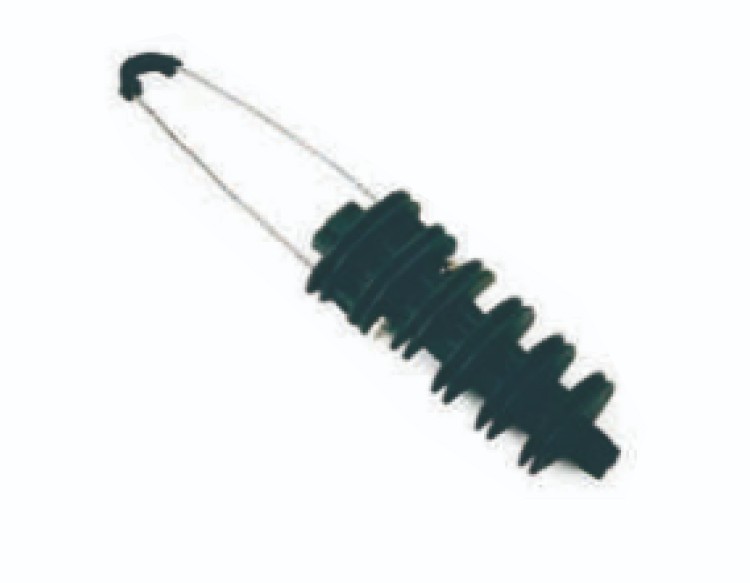

| Catalog No. | Cross-Section Range (mm2) |
| STA | 1×10/1×16 |
| STB | 2×16/2×25 |
| STC | 4X16/4×25 |
| STD | 1×16/1×70 |
| LA1 | 4×16/4×25 |
| LA2 | 2×6/2×16 |
| DCR-1 | 1×4/1×25 |
| DCR-2 | 1 ×4/1×25 |
| DCR-3 | 1×4/1×25 |
| 2.1 | 16-25 |
| 2.2 | 95-120 |
| 2.3 | 16-35 |
| PA1500 | 25-50 |
| PA2000 | 54.6-70 |
1.Material Composition:

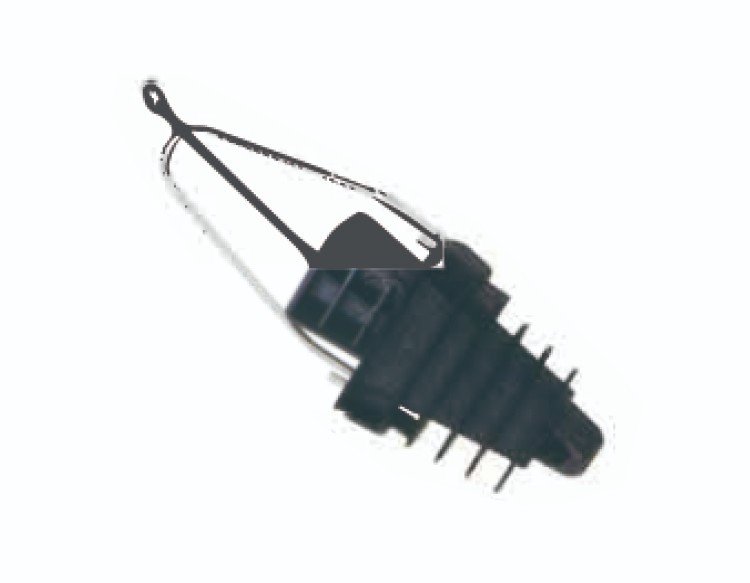

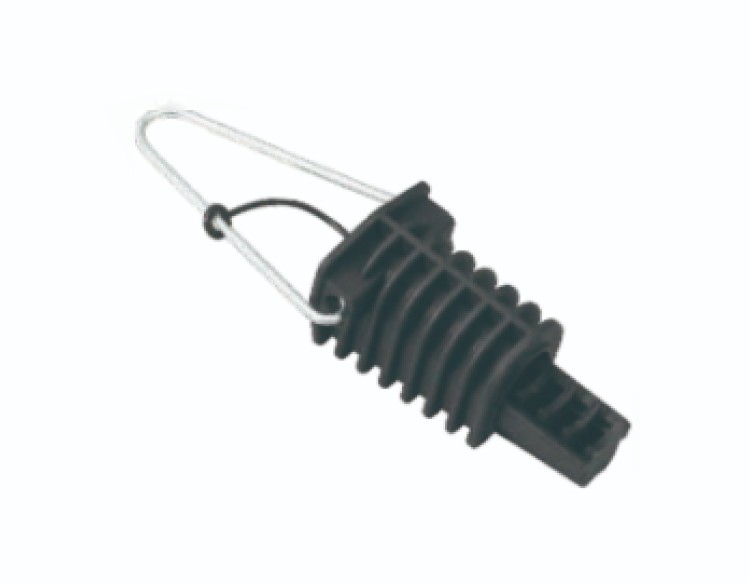

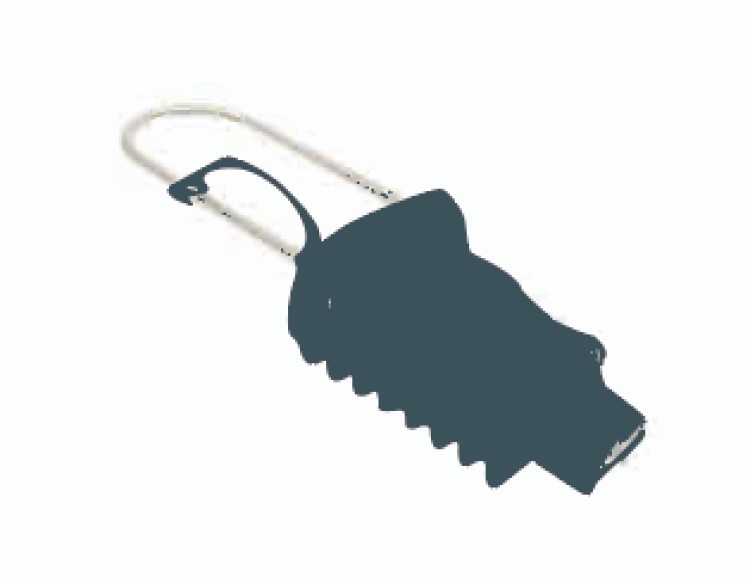

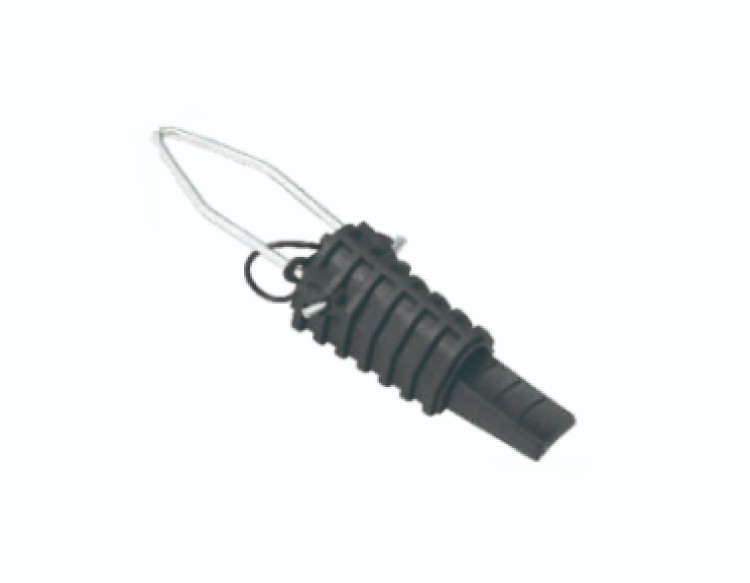

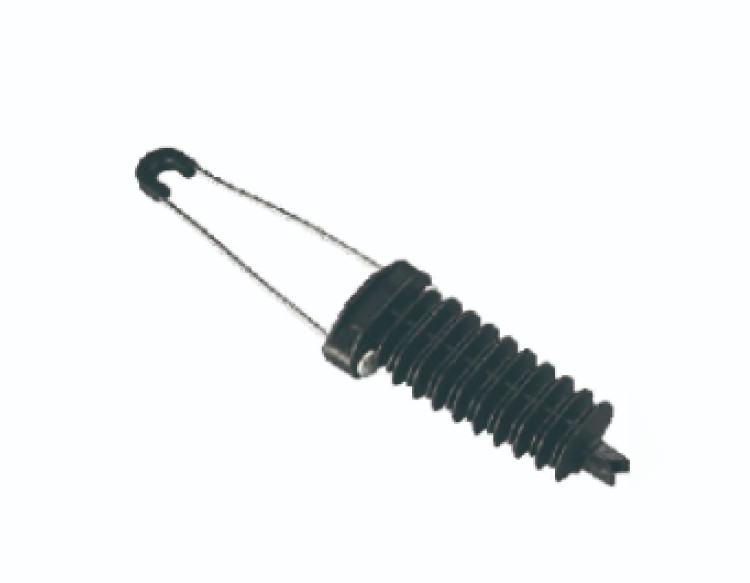

1)PA/EA 1500-2000 Clamps: These are made of a body in black UV-resistant plastic reinforced with fiberglass. Anti-UV black-resistant plastic wedges slide inside the body to grip the conductor.
2)PA/EA 95-2000 Clamps: These are made of an aluminum alloy die-casted body, with similar plastic wedges for conductor grip.
2.Bracket Compatibility:
1)The anchoring clamps can be delivered either as single clamps (clamp PA or bracket CA) or assembled with one or two clamps.
2)The bracket (standard item) has two holes and can be fixed to the pole using M14 bolts or stainless steel straps.
3.Fixation Mechanism:
1)A flexible stainless steel bail, protected by a plastic saddle, allows the clamp to be fixed to the bracket.
2)The three-hole bracket (CA 1500-3) is available upon request.
4.Application:
1)These clamps anchor LV insulated overhead lines with insulated neutral messengers.
2)They resist temperature variations and climatic conditions.
