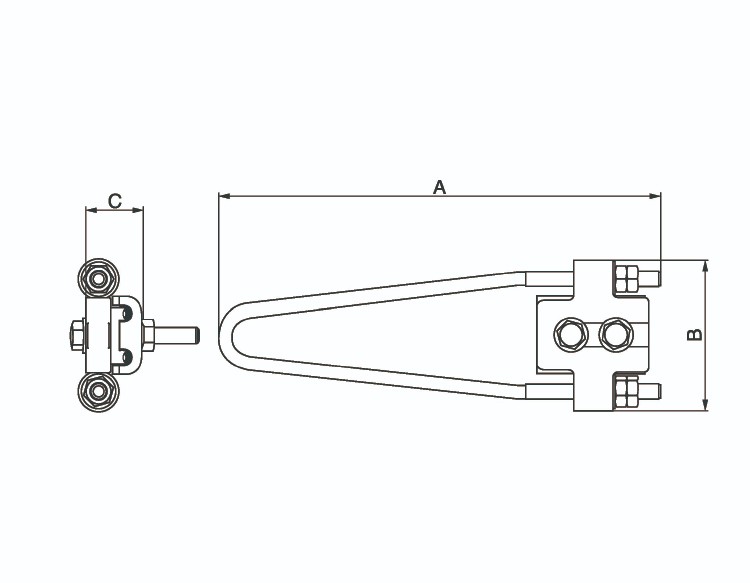

Catalog No. | Rated Voltage (kV) | Cross-Section Range (mm2) | Dimensions (mm) | Note | ||
A | B | C | ||||
JNS-1A-1 | 1KV | 4×10-4×16mm2 | 200 | 78 | 45 | Four cores |
JNS-1A-2 | 4×16-4×50mm2 | 260 | 100 | 62 | ||
JNS-2A | 4×50-4×120mm2 | 330 | 105 | 72 | ||
JNS-1C | 1KV | 2×10-2×16mm2 | 200 | 78 | 30 | Two cores |
JNS-2C | 2×16-2X50mm2 | 260 | 100 | 40 |
1.Material: These clamps are typically made from high-quality aluminum alloy or other corrosion-resistant materials.
2.Design: They are specifically designed for fixing or tightening overhead four(two)-core bunched cables with a voltage rating of 1kV or less.
3.Application: JNS strain clamps are commonly used at the ends of circuits.
4.Function: They provide secure support and strain relief for bundled cables.
