| Catalog No. | Applicable Traverse Section (overhead insulated aluminum conductor) | Length(mm2) | Diameter Range (mm) | Failure Load(kN) | InsulationCover Type |
| NXL-1J | 10kV/35 | / | 3.4 | 14.5 | NXL-2J |
| NXL-1J | 10kV/50 | / | 4.6 | 14.5 | NXL-2J |
| NXL-2J | 10kV/70 | / | 6.7 | 14.5 | NXL-2J |
| NXL-2J | 10kV/95 | / | 8.9 | 23.4 | NXL-3J |
| NXL-3J | 10kV/120 | / | 11.3 | 23.4 | NXL-3J |
| NXL-3J | 10kV/150 | / | 13.7 | 23.4 | NXL-3J |
| NXL-4J | 10kV/185 | / | 17.3 | 36.4 | NXL-4J |
| NXL-4J | 10kV/240 | / | 22.5 | 36.4 | NXL-4J |

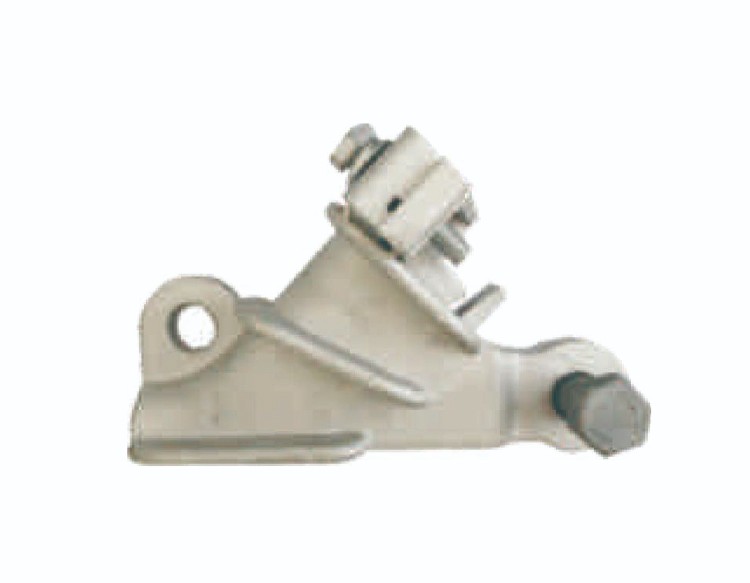

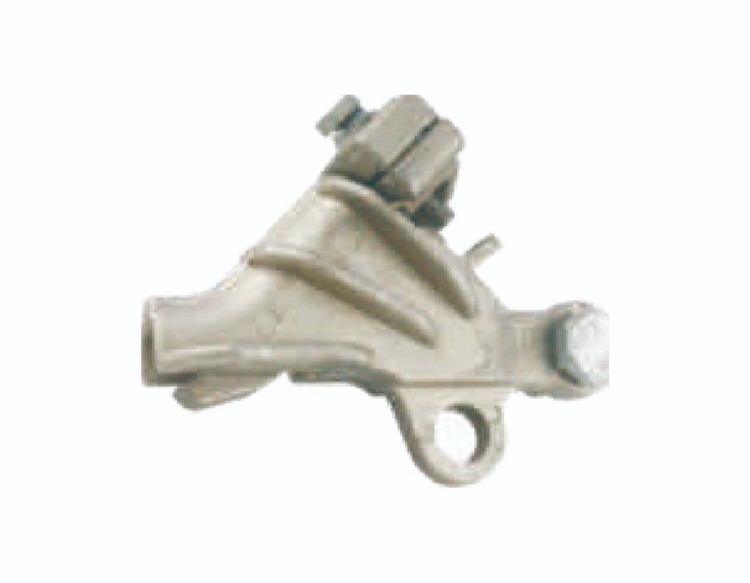

Here's how it works:
1.Installation:
1)First, attach the aerial insulation aluminum conductor or naked aluminum conductor to the rotating angle or insulator of the terminal strain pole.
2)Then, secure and tighten the aerial conductor using the strain clamp.
2.Features:
1)Made from an unmagnetic, high-intensity, oxidate-resistant aluminum alloy.
2)Utilizes a wedged-locked structure for easy installation and a large grip strength.
3.Insulation Cover:
1)When used together with an insulation cover, it provides additional insulation protection.
2)Withstand voltage:
(1)1-10kV: ≥18kV (maintains voltage for one minute without breakdown)
(2)20kV: 230kV (maintains voltage for one minute without breakdown)
3)Insulation resistance: >1.0x10Ω
4)Operating temperature: -30°C to 90°C.
