| Catalog No. | Applicable Traverse | Applicable Traverse Section (overhead insulated aluminum conductor) | Applicable Traverse Section (overhead insulated aluninum conductor) | Diameter Range (mm) | Failure Load(kN) | ||
| Diameter (mm) | Wedgecoreselection | Diameter (mm) | Wedgecoreselection | ||||
| NXJG-1 | 35 | 9.8 | 1kV/35 | 15.8 | 10kV/35 | 3.4 | 7.5 |
| NXJG-1 | 50 | 11.2 | 1kV/50 | 17.1 | 10kV/50 | 4.6 | 7.5 |
| NXJG-2 | 70 | 12.8 | 1kV/70 | 18.8 | 10kV/70 | 6.7 | 14.5 |
| NXJG-2 | 95 | 14.8 | 1kV/95 | 20.4 | 10kV/95 | 8.9 | 14.5 |
| NXJG-3 | 120 | 16.2 | 1kV/120 | 21.8 | 10kV/120 | 11.3 | 22.1 |
| NXJG-3 | 150 | 18.2 | 1kV/150 | 23.4 | 10kV/150 | 13.7 | 22.1 |
| NXJG-4 | 185 | 20.2 | 1kV/185 | 25 | 10kV/185 | 17.3 | 36.4 |
| NXJG-4 | 240 | 22.6 | 1kV/240 | 27.2 | 10kV/240 | 22.5 | 36.4 |

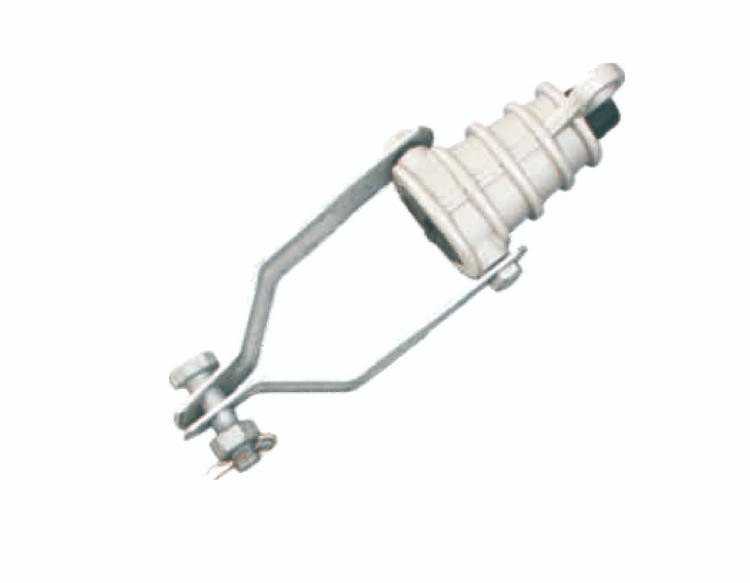

Here are some key details about the NXJG strain clamp:
1.Material: The shell is made of anti-oxidation high-strength aluminum alloy, while the core wedge is made of insulating reinforced plastics.
2.Function:
1)Connection: Used for line rotation, connection, and terminal connection.
2)Protection: Assists in vibration reduction and protects the optical cable.
3)Fixing: Withstands wire tension and secures the cable to the wire or pole.
3.Features:
1)Wedge Shape: The wedge shape structure makes installation easy.
2)Insulation: The clamp does not remove the insulation layer, and aluminum-core wires are currently used.
4.Application: Suitable for strain clamp insulation strings of 20kV aerial insulation aluminum core wire JKLYJ terminal or two ends fixing and tightening aerial insulation.
