| Catalog No. | Cross-Section Range (mm2) | Diameter Range (mm) | Grip strength (kN) | Failure load (kN) | ||
| 1KV | 10KV | 20KV | ||||
| NEJ-1 | 35 | - | - | Φ10~Φ11 | 3.4 | 12.4 |
| 50 | 16 | - | Φ12~Φ13 | 4.6 | ||
| 70 | 25 | - | Φ14~Φ15 | 6.7 | ||
| 95 | 35 | - | Φ15~Φ17 | 8.9 | ||
| NEJ-2 | 120 | 50~70 | 25~35 | Φ16~Φ18.5 | 11.3 | 20.8 |
| 120 | 95 | 50 | Φ19~Φ21 | 13.7 | ||
| NEJ-3 | 185 | 120 | 70 | Φ21~Φ23 | 17.3 | 32 |
| NEJ-4 | 240 | 150 | 95 | Φ23~Φ25.6 | 22.5 | 41.7 |
| 185 | 120 | Φ24~Φ26 | 22.5 | |||
| 240 | 150 | Φ26~Φ27.5 | 22.5 | |||
| - | 185~240 | Φ27.5~Φ31.5 | 22.5 | |||
| NEJ-5 | 300 | Φ27.5~Φ31.5 | 28.2 | 52.1 | ||

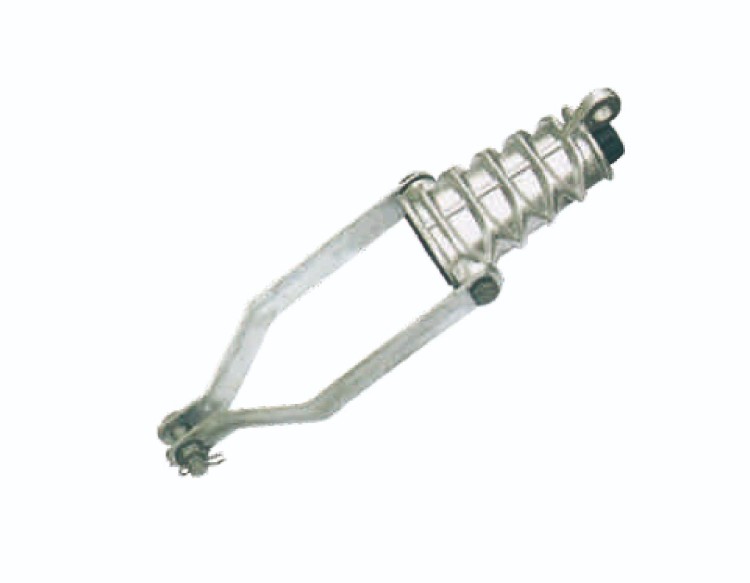

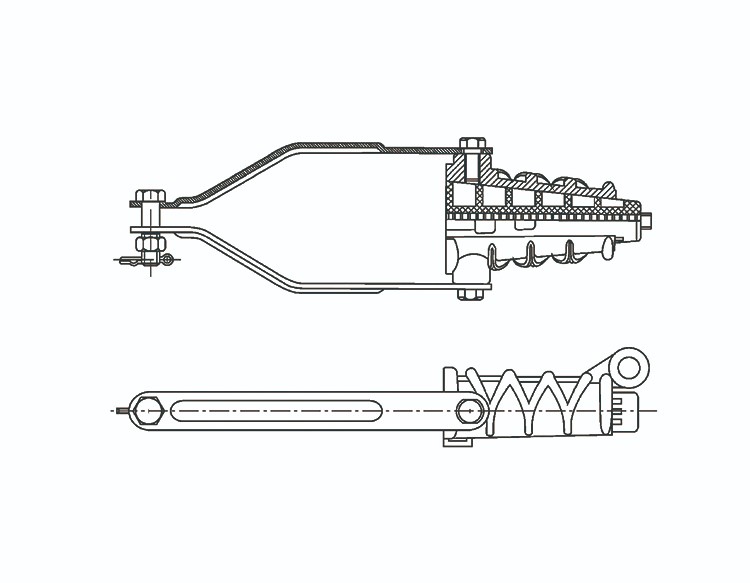

Here are some details about the NEJ Strain Clamps:
1.The clamp body is made of Aluminum Alloy, and other parts are forged steel with Hot Dip Galvanization processing.
2.They are available in various sizes, each suitable for a specific range of conductor diameters. For example, the PAL35-1000 is suitable for a conductor diameter of 25-35mm² with a breaking load of10kN, while the PAL95-2000 is suitable for a conductor diameter of 70-95mm² with a breaking load of 18kN.
3.Each clamp has a specific slip strength.
4.The clamp includes a UV resistant thermoplastic wedge and a flexible stainless steel wire bail.
