| Catalog No. | Conductor Model | Dimensions(mm) | Failure Load (kN) | Weight (kg) | |||||

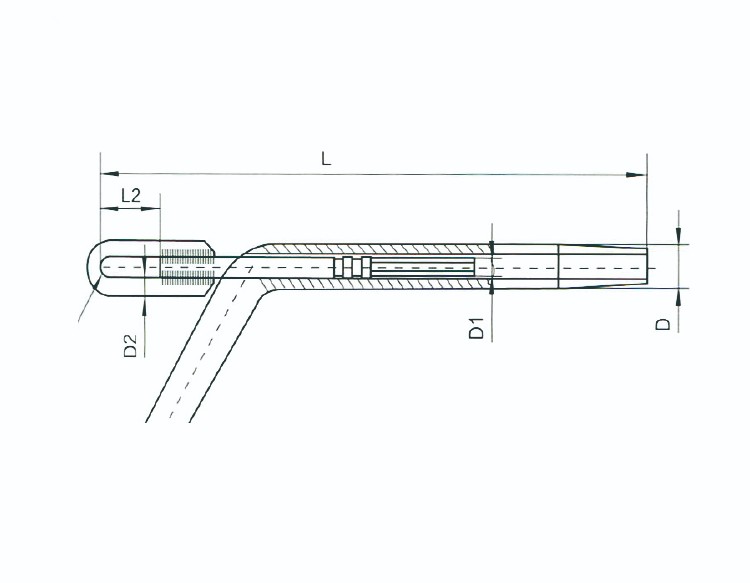

| L | L2 | D | D1 | D2 | R | ||||
| WNY-70/40 | LGJ-70/40 | 390 | 55 | 32 | 18 | 16 | 10 | 55 | 2.2 |
| WNY-150/25 | LGJ-150/25 | 400 | 55 | 30 | 14 | 16 | 8.5 | 52 | 2.1 |
| WNY-240/40 | LGJ-240/40 | 515 | 55 | 36 | 16 | 18 | 11 | 79 | 2.6 |
| WNY-300/25 | LGJ-300/25 | 570 | 55 | 40 | 14 | 18 | 11 | 79 | 3.4 |
| WNY-300/40 | LGJ-300/40 | 575 | 55 | 40 | 16 | 18 | 11 | 88 | 3.4 |
| WNY-400/35 | LGJ-400/35 | 620 | 55 | 45 | 16 | 20 | 12 | 89 | 3.8 |
| WNY-400/50 | LGJ-400/50 | 620 | 65 | 45 | 20 | 20 | 12 | 117 | 3.9 |

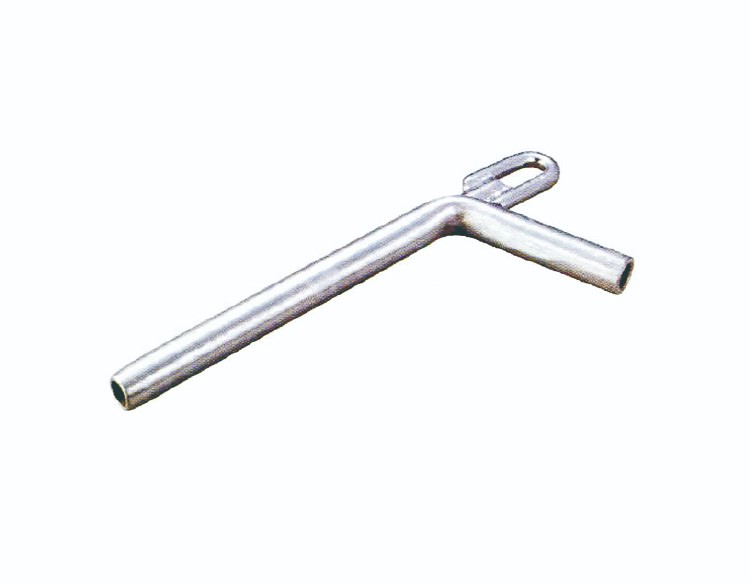

Here are some details about the WNY Strain Clamps:
1.The clamp body and jumper are made of Aluminum Alloy, and other parts are forged steel with Hot Dip Galvanization processing.
2.They are available in various sizes, each suitable for a specific range of conductor diameters.
3.Each clamp has a specific slip strength.
