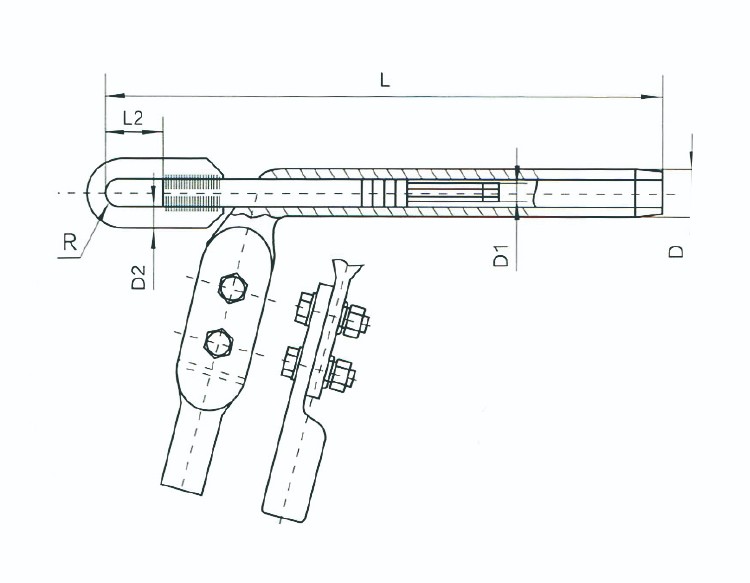

Catalog No. | Conductor Model | Dimensions(mm) | Failure Load (kN) | Weight (kg) | |||||
L | L2 | D | D1 | D2 | R | ||||
NY-70/40HG | LHBGJ-70/40 | 440 | 55 | 36 | 18 | 16 | 11 | 63.4 | 3 |
NY-120/70HG | LHBGJ-120/70 | 555 | 55 | 36 | 24 | 16 | 13 | 108.8 | 3.7 |
NY-240/30HG | LHBGJ-240/30 | 644 | 78 | 45 | 23 | 22 | 12 | 101 | 5 |
NY-300/50HG | LHBGJ-300/50 | 670 | 75 | 50 | 20 | 22 | 13 | 136.4 | 6.4 |
NY-300/70HG | LHBGJ-300/70 | 680 | 80 | 52 | 24 | 24 | 14 | 168 | 6.7 |
Here are some details about the NY-G Compression Strain Clamp for Steel Wires from Winning Electrical:
1.The clamp body and jumper are made of Aluminum Alloy, and other parts are forged steel with Hot Dip Galvanization processing.
2.They are available in various sizes, each suitable for a specific range of conductor diameters. For example, the NY.35G.W is suitable for a conductor diameter of 7.80mm, while the NY.150G.W is suitable for a conductor diameter of 16.0mm.
3.Each clamp has a specific slip strength. For instance, the NY.35G.W has a slip strength of 45kN, while the NY.150G.W has a slip strength of 187kN.
