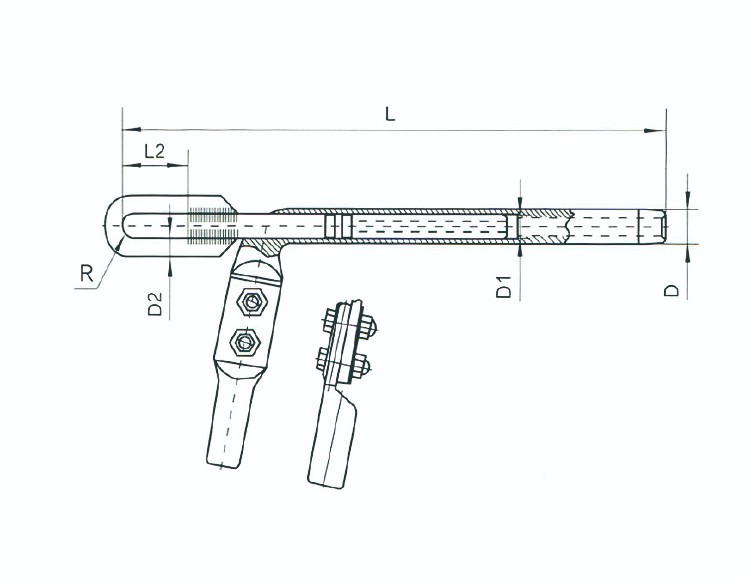

| Catalog No. | Conductor Model | Dimensions(mm) | Failure Load (kN) | Weight (kg) | |||||
| L | L2 | D | D1 | D2 | R | ||||
| NY-185/30N | NRLH5860GJ-185/30 | 545 | 55 | 36 | 16 | 16 | 10 | 59 | 4.3 |
| NY-240/30N | NRLH5860GJ-240/30 | 545 | 55 | 45 | 18 | 18 | 10 | 69.5 | 4.4 |
| NY-240/40N | NRLH5860GJ-240/40 | 545 | 70 | 45 | 18 | 18 | 10.5 | 76.5 | 4.4 |
| NY-300/40N | NRLH5860GJ-300/40 | 575 | 65 | 50 | 18 | 18 | 12 | 85.4 | 6.5 |
| NY-300/50N | NRLH5860GJ-300/50 | 575 | 65 | 50 | 18 | 18 | 12 | 96 | 6.5 |
| NY-400/35N | NRLH5860GJ-400/35 | 605 | 65 | 55 | 18 | 18 | 13.5 | 93.6 | 7.3 |
| NY-400/50N | NRLH5860GJ-400/50 | 635 | 65 | 55 | 20 | 20 | 13.5 | 112 | 7.5 |
| NY-500/35N | NRLH5860GJ-500/35 | 728 | 70 | 65 | 20 | 20 | 14 | 108.3 | 7.9 |
| NY-500/45N | NRLH5860GJ-500/45 | 645 | 70 | 65 | 20 | 20 | 14 | 117.1 | 8.1 |
| NY-630/45N | NRLH5860GJ-630/45 | 770 | 80 | 70 | 20 | 20 | 16 | 133.6 | 8.6 |

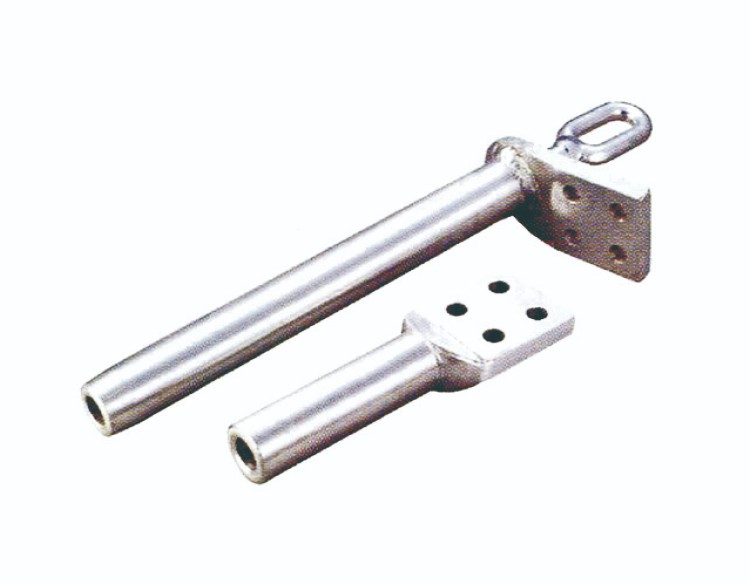

Here are some details about the NY Hydraulic Strain Clamp for Conductor (bolted type) from Winning Electrical:
1.The clamp body and jumper are made of Aluminum Alloy, and other parts are forged steel with Hot Dip Galvanization processing.
2.They are available in various sizes, each suitable for a specific range of conductor diameters. For example, the NY.95/20 is suitable for a conductor diameter of 30mm, while the NY.630/80 is suitable for a conductor diameter of 60mm.
3.Each clamp has a specific slip strength. For instance, the NY.95/20 has a slip strength of 35kN, while the NY.630/80 has a slip strength of 180kN.
