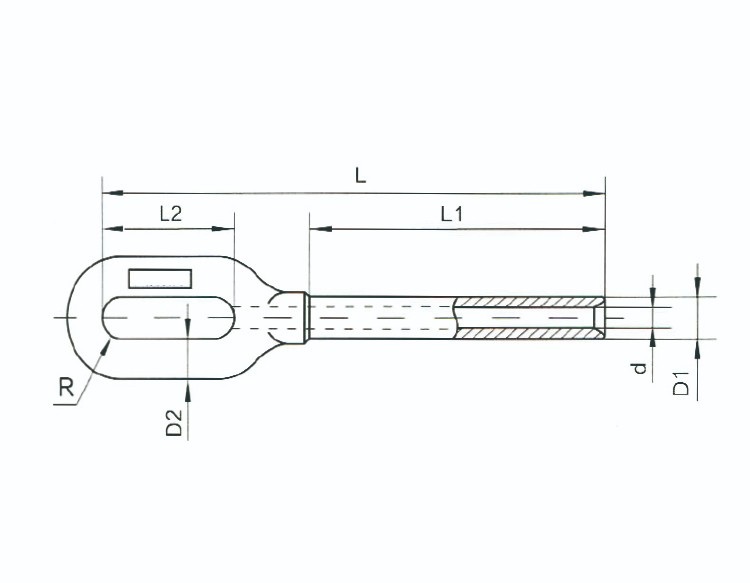

| Catalog No. | Diameter Range (mm) | Dimensions(mm) | Failure Load (kN) | Weight(kg) | ||||||
| L | L1 | L2 | D1 | D2 | d | R | ||||
| NY-35G | 7.8 | 200 | 115 | 55 | 16 | 16 | 8.4 | 10 | 45 | 0.47 |
| NY-50G | 9 | 215 | 130 | 55 | 18 | 16 | 9.7 | 10 | 60 | 0.51 |
| NY-55G | 9.6 | 225 | 140 | 55 | 20 | 16 | 10.2 | 10 | 70 | 0.58 |
| NY-70G | 11 | 250 | 155 | 65 | 22 | 18 | 11.7 | 11 | 88 | 0.76 |
| NY-80G | 11.5 | 260 | 175 | 55 | 24 | 18 | 12.2 | 11 | 90 | 0.89 |
| NY-100G | 13 | 285 | 185 | 65 | 26 | 20 | 13.5 | 11 | 123 | 1.36 |
| NY-120G | 14 | 313 | 195 | 78 | 28 | 22 | 14.7 | 12 | 143 | 1.53 |
| NY-135G | 15 | 338 | 215 | 78 | 30 | 22 | 15.7 | 13 | 164 | 1.65 |
| NY-150G | 16 | 335 | 230 | 80 | 32 | 24 | 16.7 | 15 | 187 | |

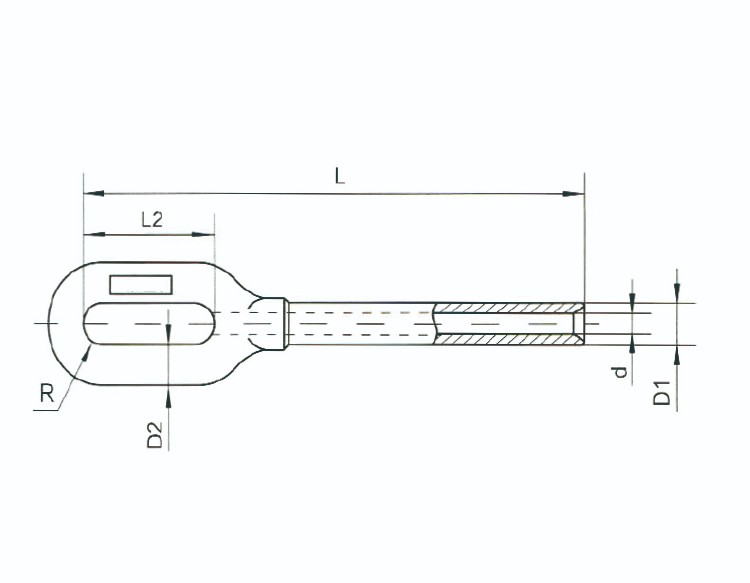

| Catalog No. | Conductor Model | Dimensions(mm) | Weight (kg) | |||||
| L | L2 | D1 | D2 | d | R | |||
| NY-35G | GJ-32 | 210 | 50 | 16 | 16 | 8.4 | 10 | 45 |
| NY-50G | GJ-50 | 230 | 55 | 18 | 16 | 9.7 | 10 | 60 |
| NY-80G | GJ-80 | 295 | 80 | 24 | 18 | 12.2 | 12 | 100 |
| NY-100G | GJ-100 | 315 | 80 | 26 | 20 | 13.7 | 13 | 110 |

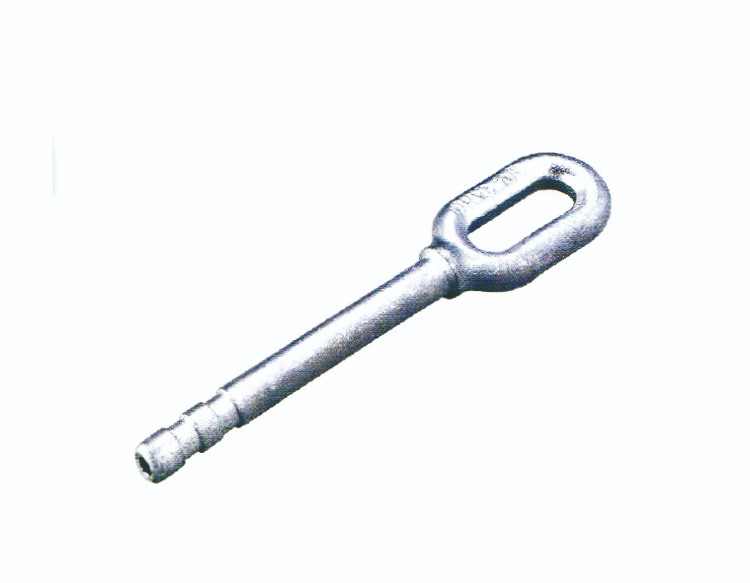

For Galvanized Steel Wire, there are several types of strain clamps available:
1.NY-G Compression Strain Clamp for Steel Wires (welding type): This type of strain clamp is used specifically for galvanized steel wires. The clamp body and jumper are made of Aluminum Alloy, and other parts are forged steel with Hot Dip Galvanization processing.
2.NY-G Compression Strain Clamp for Steel Wires (forging types): This type of strain clamp is also used for galvanized steel wires. The materials used are Hot Dip Galvanized Steel.
