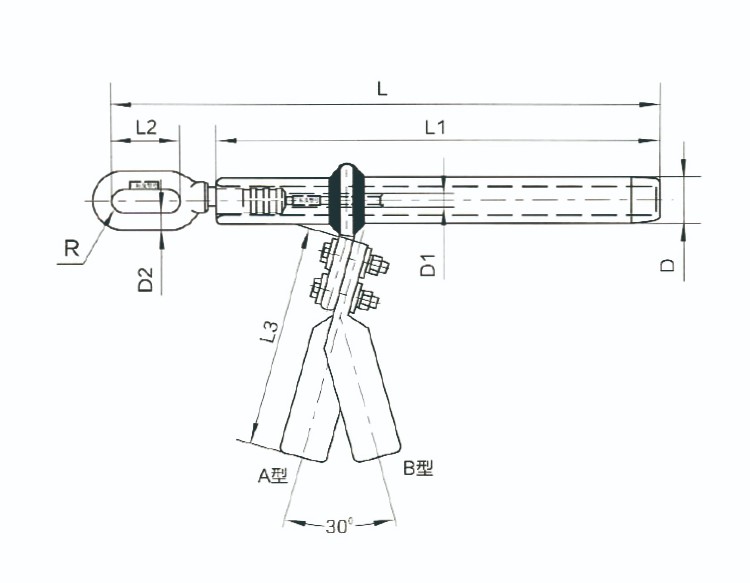

| Catalog No. | Conductor Model | Dimensions(mm) | Failure Load (kN) | Weight(kg) | |||||||
| L | L1 | L2 | L3 | D | D1 | D2 | R | ||||
| NY-500/300 | LGJ-500/35 | 598 | 480 | 78 | 260 | 52 | 16 | 22 | 13 | 113.6 | 4.85 |
| NY-500/45 | LGJ-500/45 | 598 | 480 | 78 | 260 | 52 | 18 | 22 | 13 | 121.7 | 4.9 |
| NY-500/65 | LGJ-500/65 | 628 | 510 | 78 | 260 | 52 | 22 | 22 | 13 | 146.3 | 4.97 |
| NY-630/45 | LGJ-630/45 | 608 | 490 | 78 | 290 | 60 | 18 | 22 | 15 | 141.3 | 7.05 |
| NY-630/55 | LGJ-630/55 | 635 | 510 | 80 | 290 | 60 | 20 | 24 | 15 | 156.2 | 7.34 |
| NY-630/80 | LGJ-630/80 | 675 | 550 | 80 | 290 | 60 | 24 | 24 | 15 | 183.3 | 9.85 |
| NY-800/55 | LGJ-800/55 | 725 | 580 | 100 | 335 | 65 | 20 | 26 | 17 | 182 | 10.16 |
| NY-800/70 | LGJ-800/70 | 775 | 630 | 100 | 335 | 65 | 22 | 26 | 17 | 196.7 | |
| NY-800/100 | LGJ-800/100 | 775 | 630 | 100 | 335 | 65 | 26 | 26 | 17 | 229 | 10.75 |
For ACSR (Aluminum Conductor Steel Reinforced) and AAC (All Aluminum Conductor) conductors, there are several types of strain clamps available:
1.Quadrant Strain Clamp - Aluminum (SD130S): This is an aluminum bolted deadend for transmission line construction with all aluminum, ACSR or aluminum alloy conductor, or for Alumoweld shield wire. It has a clamping range of 0.460"-0.940" and the ultimate body strength is 30,000 lb.
2.Strain Clamp, Snubbing (785002000): This strain clamp has a conductor range of AAC-600-900 MCM, ACSR- 556.5-795 MCM, and a diameter range of 0.870”-1.108”. The ultimate body strength of this clamp is 14,000 lbs.

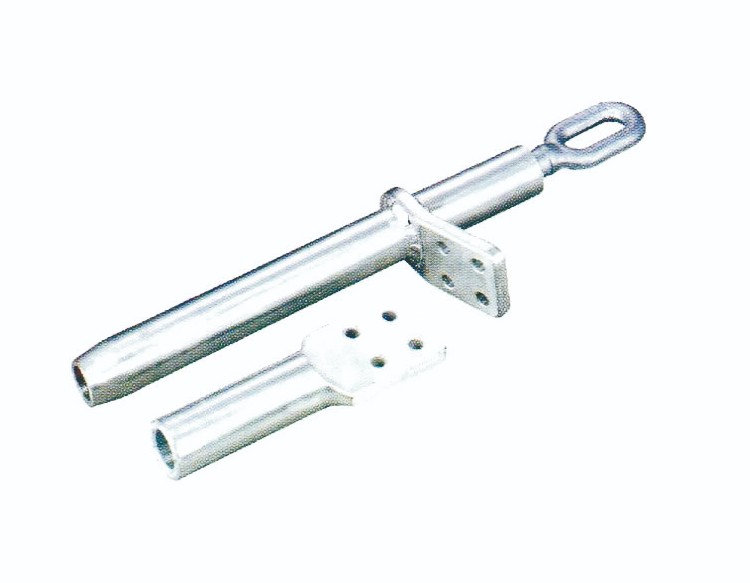

3.NY-BG Hydraulic Strain Clamp: This type of strain clamp is used specifically for aluminum-clad ACSR.
