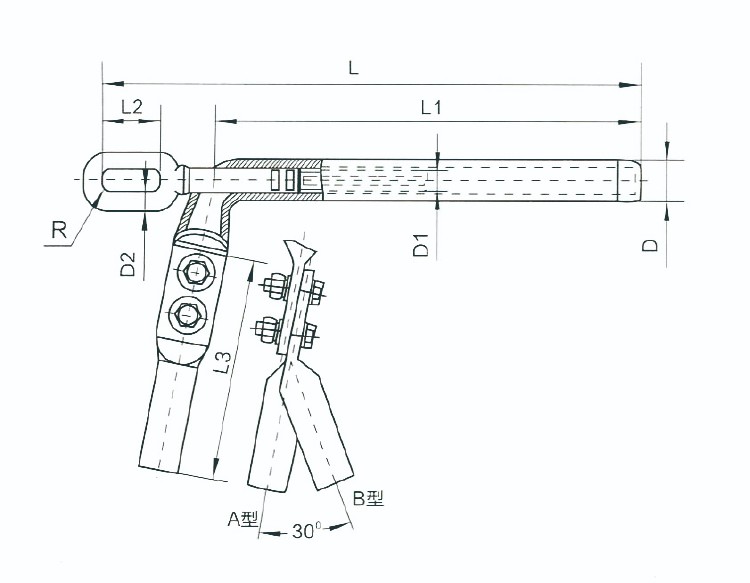

| Catalog No. | Conductor Model | Dimensions(mm) | Failure Load (kN) | Weight(kg) | |||||||
| L | L1 | L2 | L3 | D | D1 | D2 | R | ||||
| NY-50/8 | LGJ-50/8 | 355 | 250 | 55 | 190 | 26 | 12 | 16 | 10 | 16.1 | |
| NY-50/30 | LGJ-50/30 | 405 | 300 | 55 | 190 | 30 | 14 | 16 | 10 | 40.5 | 1.59 |
| NY-70/10 | LGJ-70/10 | 385 | 280 | 55 | 200 | 26 | 12 | 16 | 10 | 22.3 | 1.28 |
| NY-70/40 | LGJ-70/40 | 455 | 350 | 55 | 200 | 32 | 18 | 16 | 10 | 55.4 | 1.9 |
| NY-95/15 | LGJ-95/15 | 385 | 280 | 55 | 205 | 26 | 14 | 16 | 10 | 33.3 | 1.25 |
| NY-95/20 | LGJ-95/20 | 385 | 280 | 55 | 205 | 26 | 14 | 16 | 10 | 35.4 | 1.29 |
| NY-95/55 | LGJ-95/55 | 495 | 380 | 65 | 2205 | 34 | 20 | 18 | 11 | 74.2 | 2.26 |
| NY-120/7 | LGJ-120/7 | 385 | 280 | 55 | 205 | 30 | 12 | 16 | 10 | 26.2 | |
| NY-120/20 | LGJ-120/20 | 405 | 300 | 55 | 205 | 30 | 14 | 16 | 10 | 39 | 1.55 |
| NY-120/25 | LGJ-120/25 | 425 | 320 | 55 | 205 | 30 | 14 | 16 | 10 | 45.5 | 1.5 |
| NY-120/70 | LGJ-120/70 | 535 | 420 | 65 | 215 | 36 | 22 | 18 | 11 | 93.5 | 2.66 |
| NY-150/8 | LGJ-150/8 | 415 | 295 | 55 | 210 | 30 | 12 | 16 | 10 | 31.3 | 1.54 |
| NY-150/20 | LGJ-150/20 | 435 | 320 | 65 | 210 | 30 | 14 | 16 | 10 | 44.3 | 1.47 |
| NY-150/25 | LGJ-150/25 | 445 | 330 | 65 | 210 | 30 | 14 | 16 | 10 | 51.4 | 1.59 |
| NY-150/35 | LGJ-150/35 | 465 | 350 | 65 | 210 | 30 | 16 | 16 | 10 | 61.8 | 1.6 |
| NY-185/25 | LGJ-185/25 | 465 | 350 | 65 | 230 | 32 | 14 | 16 | 10 | 56.5 | 1.99 |
| NY-185/30 | LGJ-185/30 | 465 | 320 | 65 | 230 | 32 | 16 | 16 | 10 | 61.1 | 2.03 |
| NY-185/45 | LGJ-185/45 | 485 | 370 | 65 | 230 | 32 | 18 | 18 | 11 | 76.2 | 2.22 |
| NY-240/30 | LGJ-240/30 | 505 | 390 | 65 | 230 | 36 | 16 | 18 | 11 | 71.9 | 2.59 |
| NY-240/40 | LGJ-240/40 | 505 | 390 | 65 | 250 | 36 | 16 | 18 | 11 | 79.2 | 2.59 |
| NY-240/55 | LGJ-240/55 | 540 | 420 | 65 | 250 | 36 | 20 | 20 | 12 | 97 | 2.87 |
| NY-300/15 | LGJ-300/15 | 495 | 380 | 65 | 250 | 40 | 14 | 16 | 10 | 64.7 | |
| NY-300/20 | LGJ-300/20 | 510 | 390 | 70 | 265 | 40 | 14 | 18 | 11 | 71.9 | 2.92 |
| NY-300/25 | LGJ-300/25 | 520 | 400 | 70 | 265 | 40 | 14 | 18 | 11 | 79.3 | 2.97 |
| NY-300/40 | LGJ-300/40 | 540 | 420 | 70 | 265 | 40 | 16 | 18 | 11 | 87.6 | 3.07 |
| NY-300/50 | LGJ-300/50 | 557 | 430 | 78 | 265 | 40 | 18 | 20 | 12 | 98.3 | 3.23 |
| NY-300/70 | LGJ-300/70 | 563 | 460 | 78 | 265 | 42 | 22 | 22 | 13 | 121.6 | 3.82 |
| NY-400/20 | LGJ-400/20 | 560 | 440 | 70 | 270 | 45 | 14 | 18 | 11 | 84.4 | 3.69 |
| NY-400/25 | LGJ-400/25 | 560 | 440 | 70 | 270 | 45 | 14 | 18 | 11 | 91.2 | 3.62 |
| NY-400/35 | LGJ-400/35 | 573 | 440 | 78 | 270 | 45 | 16 | 20 | 12 | 98.7 | 3.89 |
| NY-400/50 | LGJ-400/50 | 593 | 460 | 78 | 270 | 45 | 20 | 22 | 13 | 117.3 | 4.14 |
| NY-400/65 | LGJ-400/65 | 616 | 480 | 78 | 270 | 48 | 22 | 22 | 13 | 128.5 | 4.22 |
| NY-400/95 | LGJ-400/95 | 663 | 520 | 80 | 270 | 48 | 26 | 24 | 15 | 162.8 | 5.23 |

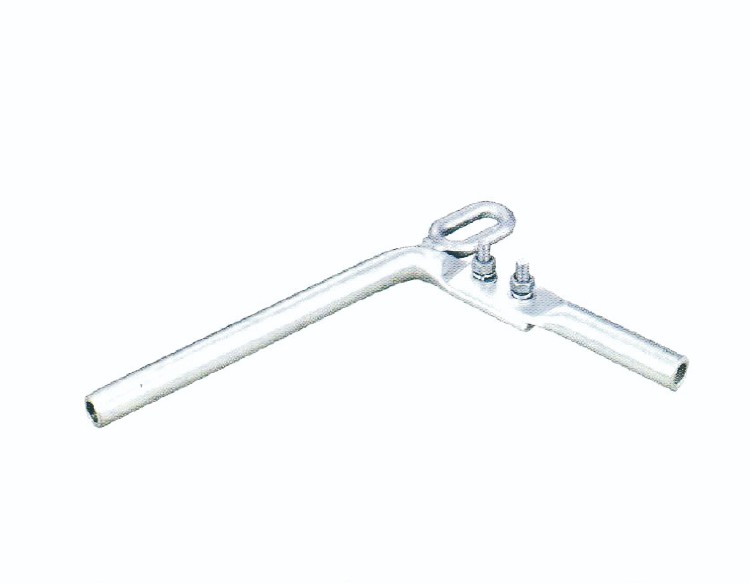

1.Material: The clamp body is typically made of aluminum or aluminum alloy. Other parts, such as the anchor, are often made of drop-forged steel, which is hot-dip galvanized.
2.Usage: These clamps are used for aluminum-clad ACSR conductors. They are also used in transmission line construction with all aluminum, ACSR, or aluminum alloy conductor, or for Alumoweld shield wire.
3.Design: The design of these clamps allows them to handle a wide range of conductor sizes. For example, the SD family quadrant strain clamp has a clamping range of 0.460"-0.940" and is designed for single cable.
4.Strength: The strength of these clamps varies with conductor type, size, and stranding. The minimum slip strength rating on standard strength conductors is 40% RBS (Partial Tension). For many standard strength conductors, the minimum slip strength of this clamp series is 60% RBS (Normal Tension).
