| Catalog No. | Diameter Range (mm) | Dimensions(mm) | U-bolt | Failure Load (kN) | Weight(kg) | |||||

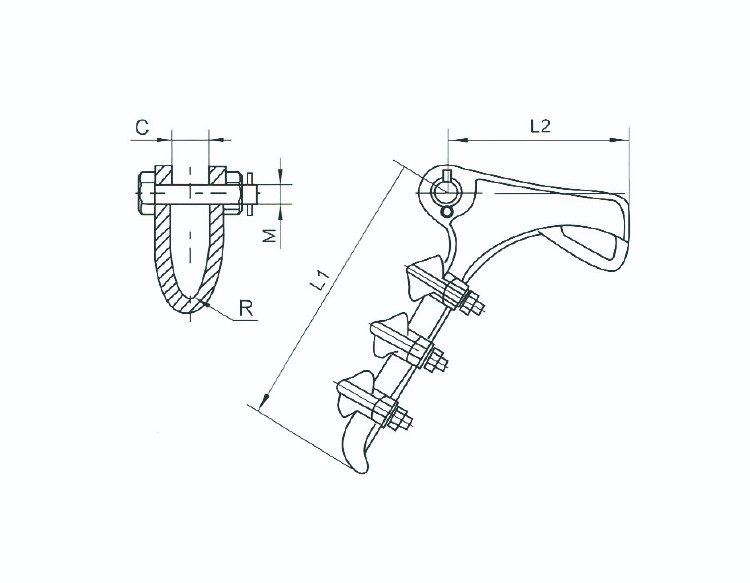

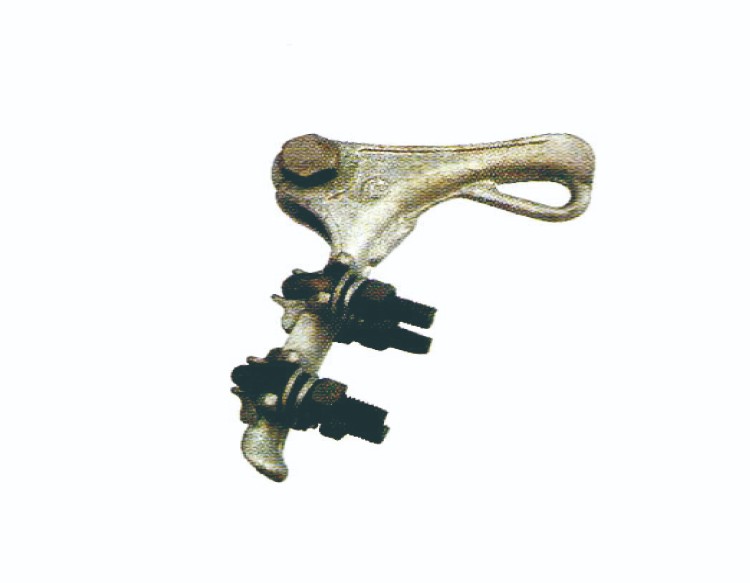

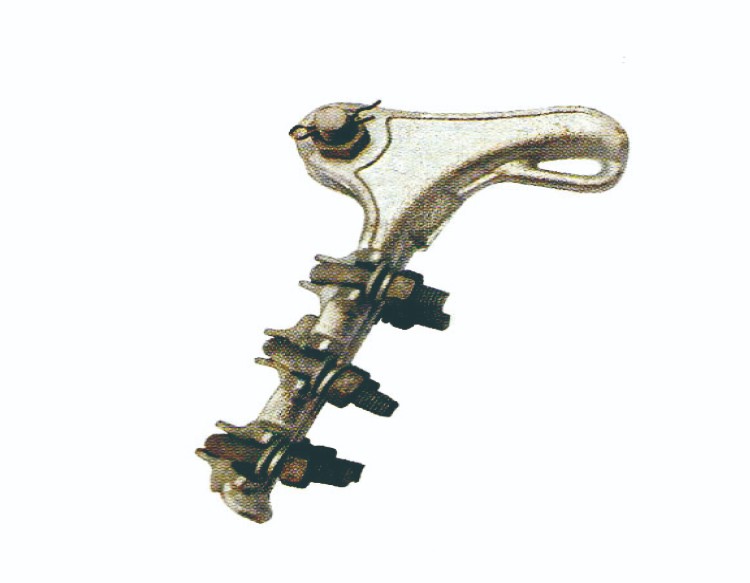

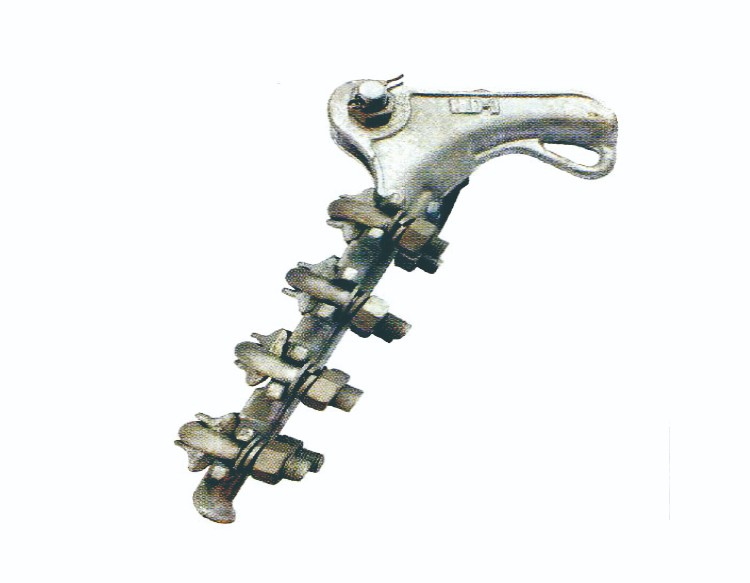

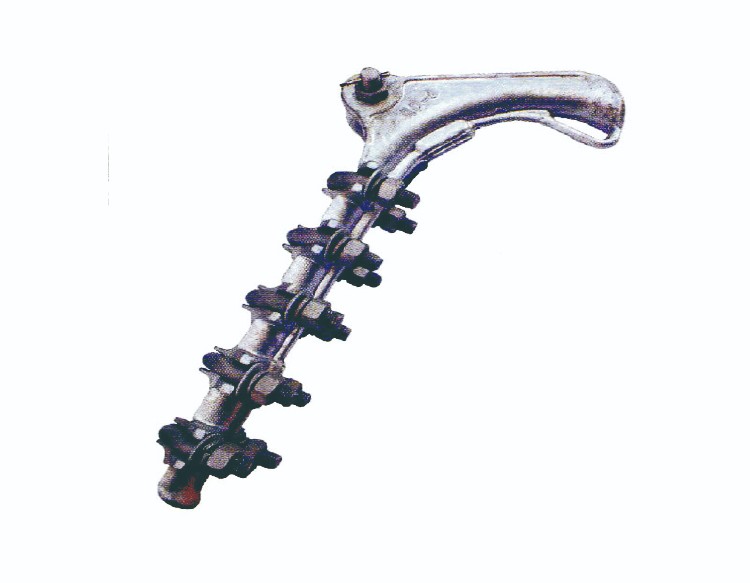

| M | C | L1 | L2 | R | number | diameter (mm) | ||||
| NLD-1 | 5~10 | 16 | 18 | 150 | 120 | 6.5 | 2 | 12 | 40 | 1.24 |
| NLD-2 | 10.1~14 | 16 | 18 | 205 | 130 | 8 | 3 | 12 | 10 | 1.9 |
| NLD-3 | 14.1~18 | 18 | 22 | 310 | 160 | 11 | 4 | 16 | 70 | 4.24 |
| NLD-4 | 18.1~23 | 18 | 25 | 410 | 220 | 12.5 | 5 | 16 | 90 | 6.53 |
| NLD-4B | 18.1~23 | 18 | 27 | 370 | 200 | 12.5 | 4 | 16 | 90 | 6.57 |
NLD Series Tension Clamps (made of malleable iron):
1.Diameter of Conductor: Ranges from 10.1 mm to 14.0 mm.
2.Dimensions:
1)D: 16 mm
2)C: 18 mm
3)L: 205 mm
4)I: 130 mm
3.Bolt Ultimate Strength: 41 kN
4.Features: The NLD series strain clamp is suitable for aerial lines up to 10 kV. It fixes aluminum conductors or ACSR (Aluminum Conductor Steel Reinforced) on strain poles and can be used together with insulated covers for insulation protection.
