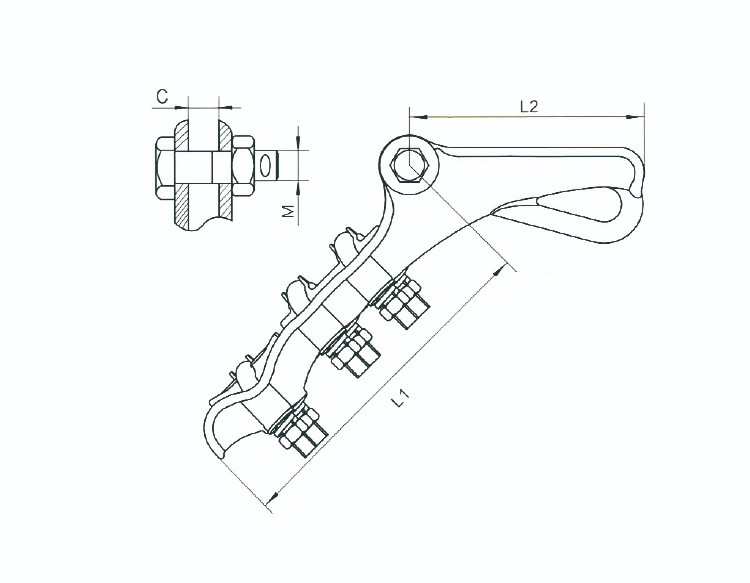

| Catalog No. | Diameter Range (mm) | Dimensions(mm) | U-bolt | Failure Load (kN) | Weight(kg) | |||||
| M | C | L1 | L2 | R | number | diameter (mm) | ||||
| NLD-1J | 5~10 | 12 | 18 | 150 | 120 | 6.5 | 2 | 12 | 40 | 0.53 |
| NLD-2J | 10.1~14 | 12 | 18 | 205 | 130 | 8 | 2 | 12 | 40 | 0.89 |
| NLD-3J | 14.1~18 | 16 | 22 | 310 | 160 | 11 | 3 | 14 | 70 | 1.78 |
| NLD-4J | 18.1~23 | 16 | 25 | 410 | 220 | 12.5 | 3 | 14 | 90 | 2.5 |
Here are the key details:
1.Applicable Conductor Diameter: Suitable for various conductor diameters.
2.Material: Made from aluminum alloy.
3.Application: Used for non-load-bearing connection fittings in distribution systems, including:
1)Connection of aluminum strand or steel core aluminum strand.
2)Connection between aluminum strand and copper strand.
3)Suitable for non-seriously polluted areas.
