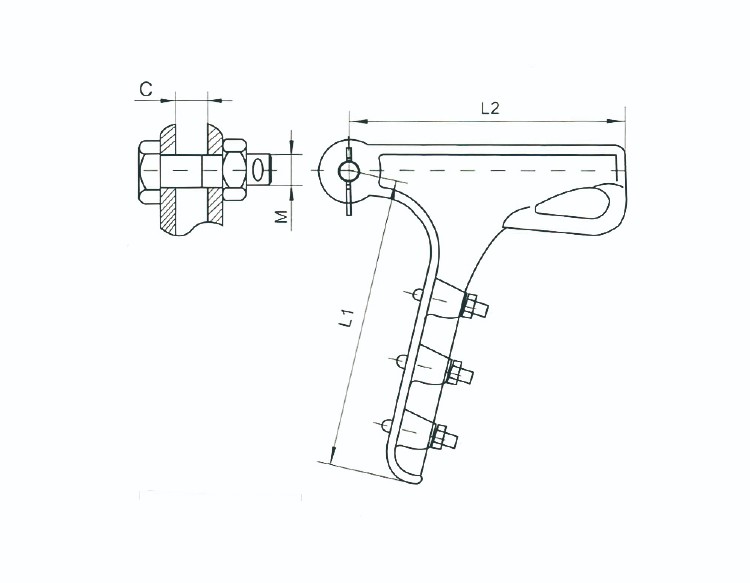

| Catalog No. | Diameter Range (mm) | Main Dimensions(mm) | U-bolt | Failure Load (kN) | ||
| C | M | M | number | |||
| NLL-1 | 5~10 | 18 | 16 | 12 | 2 | 40 |
| NLL-2 | 10.1~14 | 18 | 16 | 12 | 2 | 40 |
| NLL-3 | 14.1~18 | 27 | 16 | 14 | 3 | 70 |
| NLL-4 | 18.1~23 | 30 | 18 | 14 | 3 | 90 |
| NLL-27 | 12.45~21.66 | 27 | 18 | 16 | 4 | 90 |
| NLL-5 | 23~29 | 36 | 22 | 16 | 4 | 120 |
| NLL-6 | 25.9~32.7 | 42 | 22 | 18 | 4 | 120 |
| NLL-1A | 5~10 | 18 | 16 | 12 | 2 | 40 |
| NLL-2A | 10.1~14 | 18 | 16 | 12 | 2 | 40 |
| NLL-3A | 14.1~18 | 27 | 16 | 14 | 3 | 70 |
| NLL-4A | 18.1~23 | 30 | 18 | 14 | 3 | 90 |

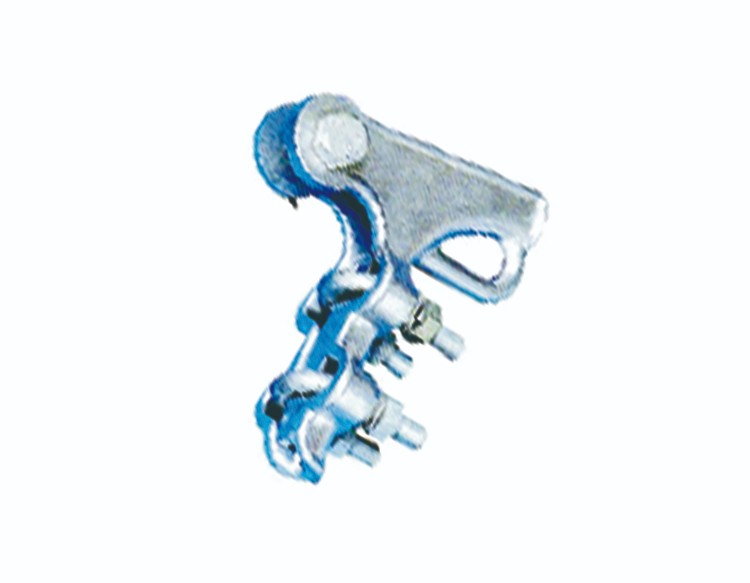

NLL Series Tension Clamps (made of aluminum alloy):
1.These bolted type tension clamps are also known as dead end strain clamps or quadrant strain clamps.
2.They are used for completing the tensional connection on a conductor or cable.
3.NLL series tension clamps are made of aluminum alloy.
