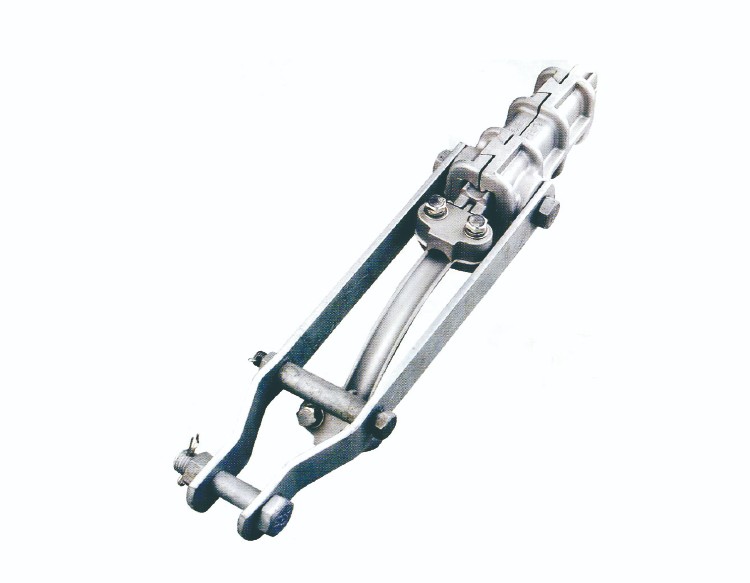

Strain Clamps-NEL

    NEL series Strain Clamp is suitable for fixation and tension of steel-reinforced aluminum conductor (LGJ).

    The products are widely used for different types of aluminum alloy cable according to the specific requirements of various countries.


  • Product Details
Catalog No.Conductor ModelDiameter (mm)Grip Strength(kN)Failure Load(KN)
NEL-3LGJ-95/551674.284.2
LGJ-150/2016.6744.3
LGJ-150/2517.151.4
LGJ-150/3517.561.8
LGJ-185/101838.8
LGJ-185/2518.956.4
LGJ-185/3018.8861.1
LGJ-185/4519.676.2
NEL-4LGJ-240/3021.671.8108.6
LGJ-240/4021.6679.2
LGJ-240/5522.497
LGJ-300/1523.0164.7
LGJ-300/2023.4371.9
LGJ-300/2523.7679.2
LGJ-300/4023.9487.6
LGJ-300/5024.2698.2
NEL-5LGJ-300/7025.2121.6142
LGJ-400/2026.9184.4
LGJ-400/2526.6491.1
LGJ-400/3526.8298.1
LGJ-400/5027.63117.2
LGJ-400/6528128.4

Here are some of its structural features:

1.Convenient Installation: Special tools are not required, and the cable does not need to be cut.

2.Efficient work for the transmission line installation without cutting, fewer contact points, and keeping the good line losses.

3.Safety and reliability installation solution.

4.The body and the wedge core are made of high-strength aluminum alloy materials, can provide more grip and failure load.

5.Self-locking Function: The cable can be locked automatically after tension. The product also could be used again in other applications.
