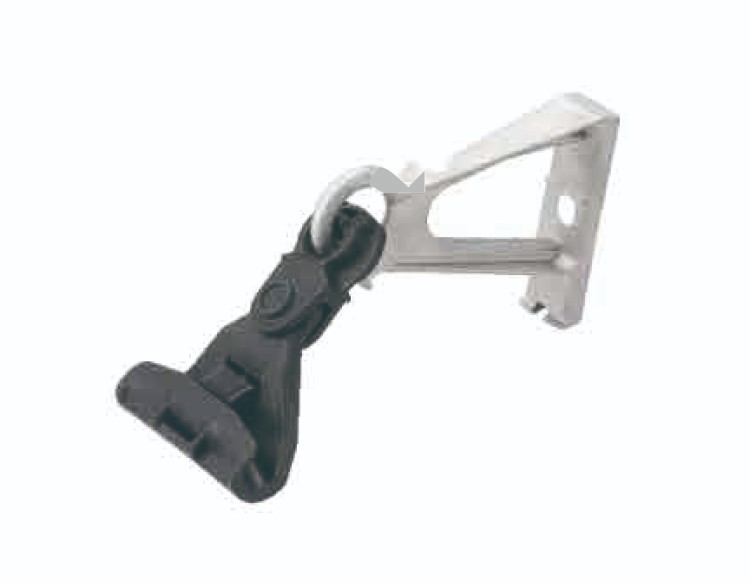

Suspension Clamps-ES54-14

    The ES54-14 Suspension Clamp is designed for hanging LV-ABC (Low Voltage Aerial Bundled Cable) lines with insulated neutral messengers.

  • Product Details
Catalog No.Diameter
Range (mm)
ES54-1416-95

Here are the key details about the ES54-14:

1.Material:

  1)The anchoring bracket is made of corrosion-resistant aluminum alloy.

  2)The clamp and movable link are made of weather-resistant and mechanically reliable insulated polymer.

2.Installation:

  1)Easy cable installation without tools.

  2)The neutral messenger is placed in the groove and locked by an adjustable grip device to accommodate different cable sizes.

  3)No loose parts.

3.Standard: Complies with NFC 33-040 and EN 50483-3.

4.Conductor Range: Suitable for conductors with a diameter of 16 mm² to 95 mm².
