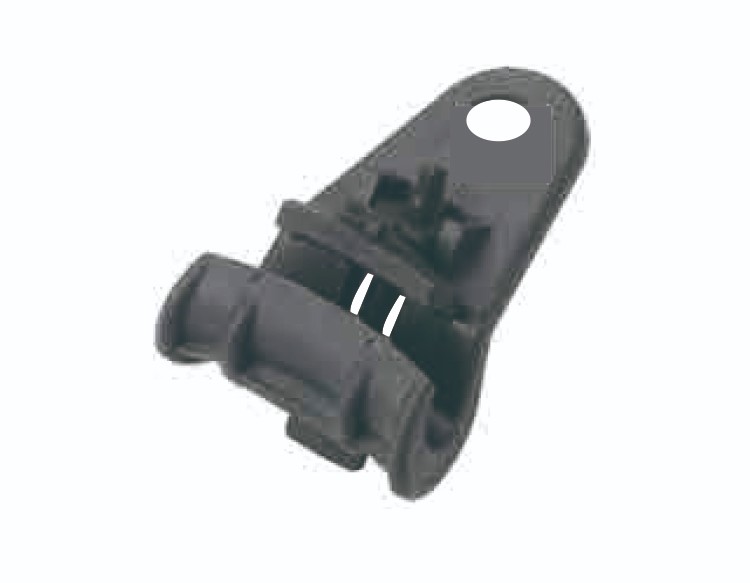

Suspension Clamps-1.1B

    The 1.1B Suspension Clamp is designed for hanging LV-ABC (Low Voltage Aerial Bundled Cable) lines with insulated neutral messengers.
  • Product Details
Catalog No.Diameter
Range (mm)
1.1B16-95

Here are the key details about the 1.1B Suspension Clamp:

1.Material: The clamp is made of UV-resistant glass fiber-reinforced polymer, ensuring durability and weather resistance.

2.Conductor Range: Suitable for conductors with a diameter ranging from 16 mm² to 95 mm².

3.Standard: Complies with standards NFC 33-042 and EN 50-483.

4.Features:

  1)Adjustable Grip Device: The neutral messenger is fixed by an adjustable grip device.

  2)Movable Link: Allows longitudinal and transversal movement of the clamp body.

  3)Bracket Options:

    (1)Standard version (ES) comes with a preinstalled bracket, preventing the clamp from turning over.

    (2)Available without a bracket or with a fuse link.

  4)Installation:

    (1)Tool-free installation.

    (2)No loosable parts.

    (3)Provides additional insulation between the cable and the pole.

  5)Fixing Mechanism:

    (1)Universal fixing of the bracket using one bolt M16 or a stainless steel strap of 20x0.7 mm.

  6)Corrosion Resistance: The bracket is made of corrosion-resistant material.

  7)Exceeds Requirements: Meets or exceeds requirements according to NF C 33-040 and EN 50483.
