| Catalog No. | Diameter Range (mm) | Dimensions (mm) | Failure Load (kN) | Weight (kg) | |||||

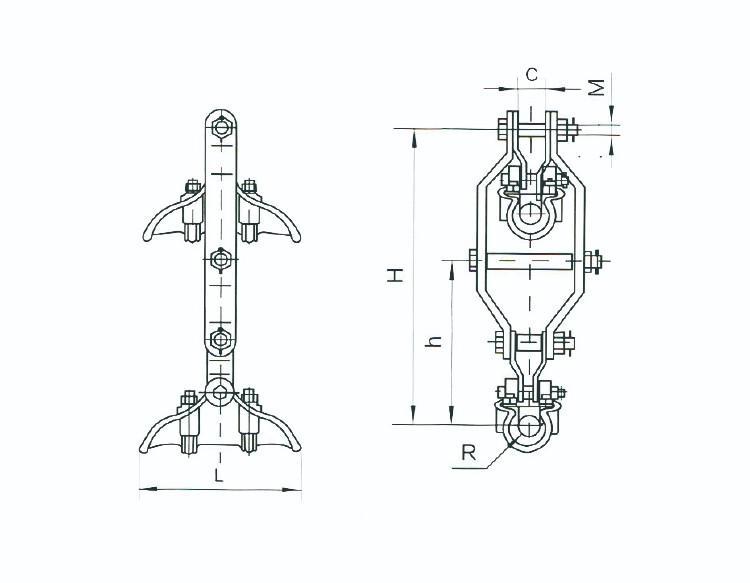

| L | C | R | H | h | M | ||||
| XCS-4H | 21~26 | 225 | 42 | 13.5 | 530 | 400 | 16 | 70 | 10.2 |
| XCS-5H | 26~31.5 | 300 | 44 | 16 | 545 | 400 | 18 | 100 | 11.4 |
| XCS-6H | 32~43 | 300 | 55 | 22 | 550 | 400 | 22 | 120 | 12.9 |

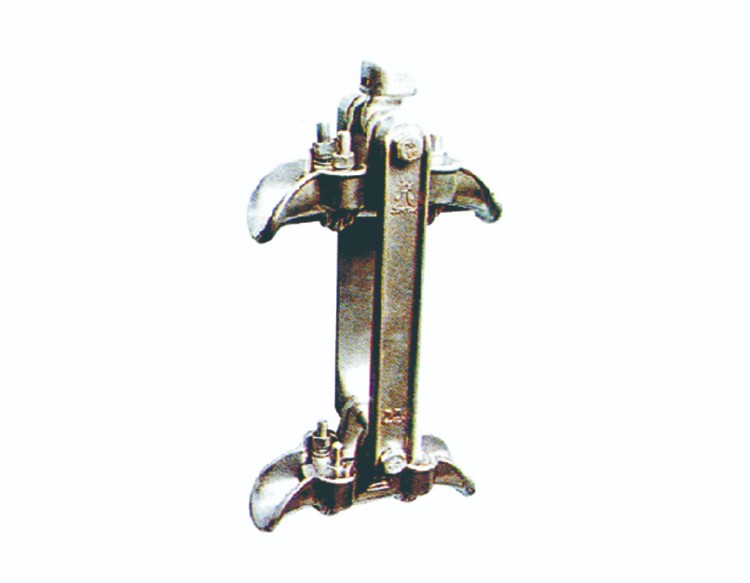

Here are the details for the XCS-H:
1.Material: The clamp body and keepers are made of aluminium alloy, while the cotter-pins are stainless steel, and other parts are steel.
2.Catalog Numbers:
1)XCS-4H: Suitable for conductors with a diameter ranging from 21 mm to 26 mm. It has dimensions of 400 mm (height) x 300 mm (length) and a rated failure load of 13.5 kN. The weight is approximately 10.2 kg.
2)XCS-5H: Designed for conductors with a diameter between 26 mm and 31.5 mm. It measures 400 mm (height) x 300 mm (length), has a rated failure load of 16 kN, and weighs around 11.4 kg.
3)XCS-6H: Intended for conductors with a diameter of 32 mm to 43 mm. Its dimensions are 400 mm (height) x 300 mm (length), with a rated failure load of 22 kN and a weight of approximately 12.9 kg.
