CABO ACSR ZEBRA 485mm2 BS EN 50182 China

Description

The use of Aluminium as a material for electrical conductors has greatly developed mainly due to its electrical properties. However, Aluminium conductors for most of transmission lines which spans are quite long, it is necessary an additional mechanical support. Commonly it is used galvanized steel wires for cores of ACSR.

Application
Widely used as bare cable for overhead transmission lines and also as primary and secondary bare cable for distribution lines.

Construction

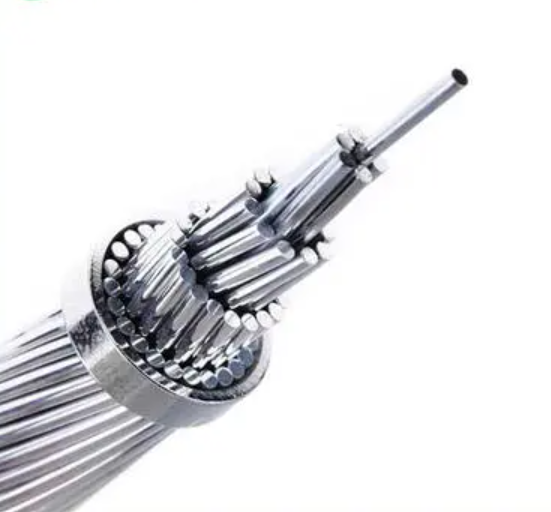

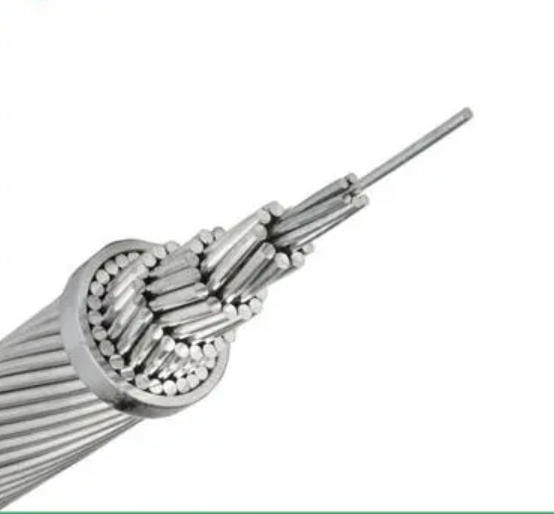

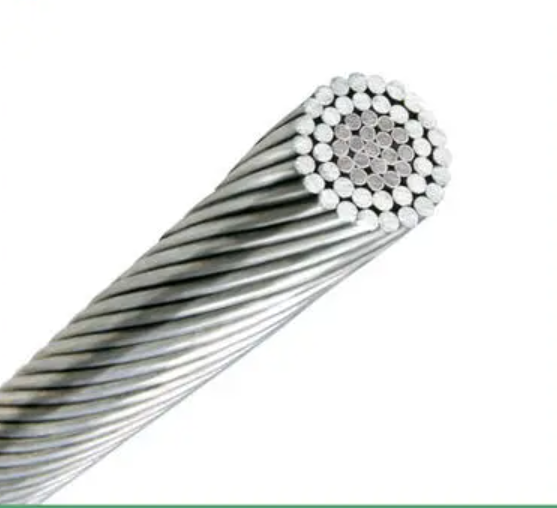

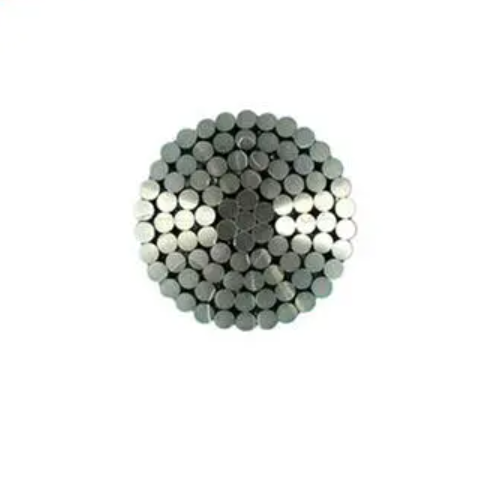

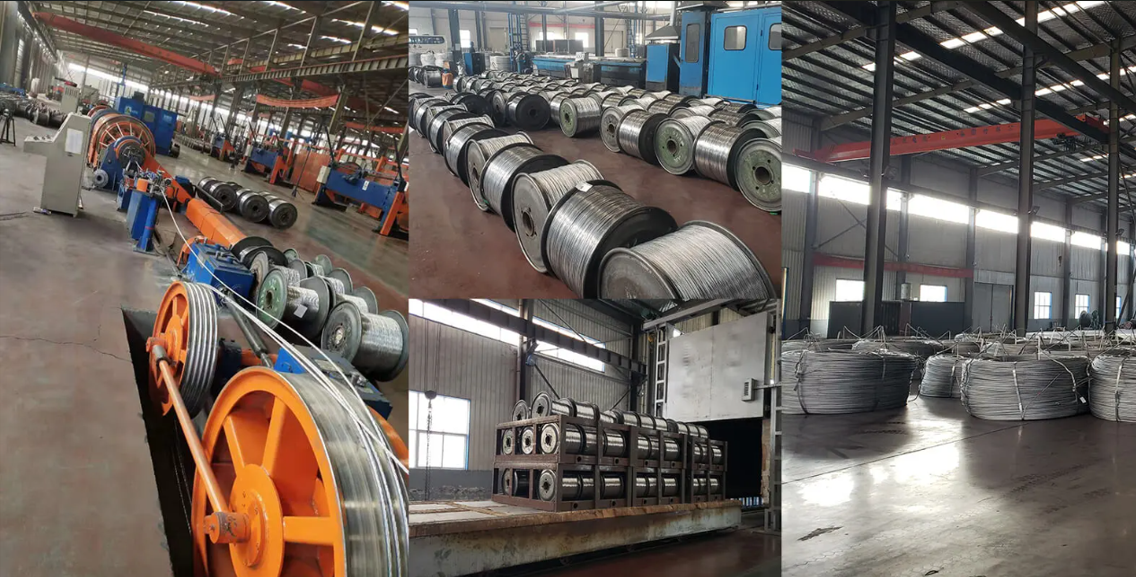

ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H19 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.

ACSR is according to electrical and mechanical strength requirements of transmission or distribution lines, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.

Characteristics

Code Name	Stranding		Section	Overall Diameter	Conductor Weight	Breaking Load	Electrical Resistance
	Aluminum	Steel	mm²	mm	kg/km	kN	DC.20°C
	No. x Φmm		mm²	mm	kg/km	kN	Ω/km
MOLE	6/1.50	1/1.50	12.37	4.50	42.8	4.14	2.7027
SQUIRREL	6/2.11	1/2.11	24.50	6.33	84.7	7.87	1.3659
GOPHER	6/2.36	1/2.36	30.57	7.08	106.0	9.58	1.0919
WEASEL	6/2.59	1/2.59	36.87	7.77	127.6	11.38	0.9065
FOX	6/2.79	1/2.79	42.81	8.37	148.1	13.21	0.7812
FERRET	6/3.00	1/3.00	49.47	9.00	171.2	15.27	0.6757
RABBIT	6/3.35	1/3.35	61.71	10.10	213.5	18.42	0.5419
MINK	6/3.66	1/3.66	73.60	11.00	254.9	21.67	0.454
SKUNK	12/2.59	7/2.59	100.10	13.00	463.0	52.79	0.4568
BEAVER	6/3.99	1/3.99	87.50	12.00	302.9	25.76	0.382
HORSE	12/2.79	7/2.79	116.20	14.00	537.3	61.26	0.3936
RACOON	6/4.09	1/4.09	91.90	12.30	318.3	27.06	0.3635
OTTER	6/4.22	1/4.22	97.90	12.70	338.8	28.81	0.3415
CAT	6/4.50	1/4.50	111.30	13.50	385.3	32.76	0.3003
HARE	6/4.72	1/4.72	122.50	14.20	423.8	36.04	0.273
DOG	6/4.72	7/1.57	118.60	14.20	394.0	32.65	0.2733
COYOTE	26/2.54	7/1.91	151.80	15.90	520.7	45.86	0.2192
COUGAR	18/3.05	1/3.05	138.81	15.30	418.8	29.74	0.2188
TIGER	30/2.36	7/2.36	161.80	16.50	602.2	57.87	0.2202
WOLF	30/2.59	7/2.59	195.00	18.10	725.3	68.91	0.1829
DINGO	18/3.35	1/3.35	167.51	16.80	505.2	35.87	0.1814
LYNX	30/2.79	7/2.79	226.20	19.50	841.6	79.97	0.1576
CARACAL	18/3.61	1/3.61	194.40	18.10	586.7	40.74	0.1562
PANTHER	30/3.00	7/3.00	261.60	21.00	973.1	92.46	0.1363
JAGUAR	18/3.86	1/3.86	222.30	19.30	670.8	46.57	0.1366
LION	30/3.18	7/3.18	293.90	22.30	1093.4	100.47	0.1213
BEAR	30/3.35	7/3.35	326.10	23.50	1213.4	111.50	0.1093
GOAT	30/3.71	7/3.71	400.00	26.00	1488.2	135.13	0.0891
SHEEP	30/3.99	7/3.99	462.60	27.90	1721.3	156.30	0.0771
ANTELOPE	54/2.97	7/2.97	422.60	26.70	1413.8	118.88	0.0773
BISON	54/3.00	7/3.00	431.20	27.00	1442.5	121.30	0.0758
DEER	30/4.27	7/4.27	529.80	29.90	1971.4	179.00	0.0673
ZEBRA	54/3.18	7/3.18	484.50	28.60	1620.8	131.92	0.0674
ELK	30/4.50	7/4.50	588.40	31.50	2189.5	198.80	0.0606
CAMEL	54/3.35	7/3.35	537.70	30.20	1798.8	146.40	0.0608
MOOSE	54/3.53	7/3.53	597.00	31.80	1997.3	159.92	0.0547
KEZIAH	30/2.79	7/2.79	226.20	19.50	841.6	102.89	0.174

CABO ACSR ZEBRA 485mm2 BS EN 50182
